Home Photovoltaic Solar Battery Charge Controller

Product information:

Charging mode: MPPT automatic maximum power point tracking
Charging method: three stages: constant current (MPPT), constant voltage, floating charge
System type: DC12V/24V/36V/48V
Soft start time: ≤1S
Dynamic response recovery time: 100us
Machine efficiency: ≥98.1%
Photovoltaic module utilization rate: ≥99%
Maximum limit input voltage (VOC): DC190V
Humidity: 0~90%RH (No condensation)

Safety class: CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility: EN61000, EN55022, EN55024

Environmental Requirements:

Altitude: 0~4000m
Ambient temperature: -20℃ ~ +55℃
Storage temperature: -40℃ ~ +75℃
Atmospheric pressure: 70~106kPa

Protective Function:
Input anti-backflow protection: yes
Temperature protection: 75℃
Temperature rise protection: above 70°C, reduce power output, below 55°C normal power output
Fan opening temperature:>40℃
Fan off temperature: <35℃

Size Information:

215x115x50MM

Packing list:

Controller *1

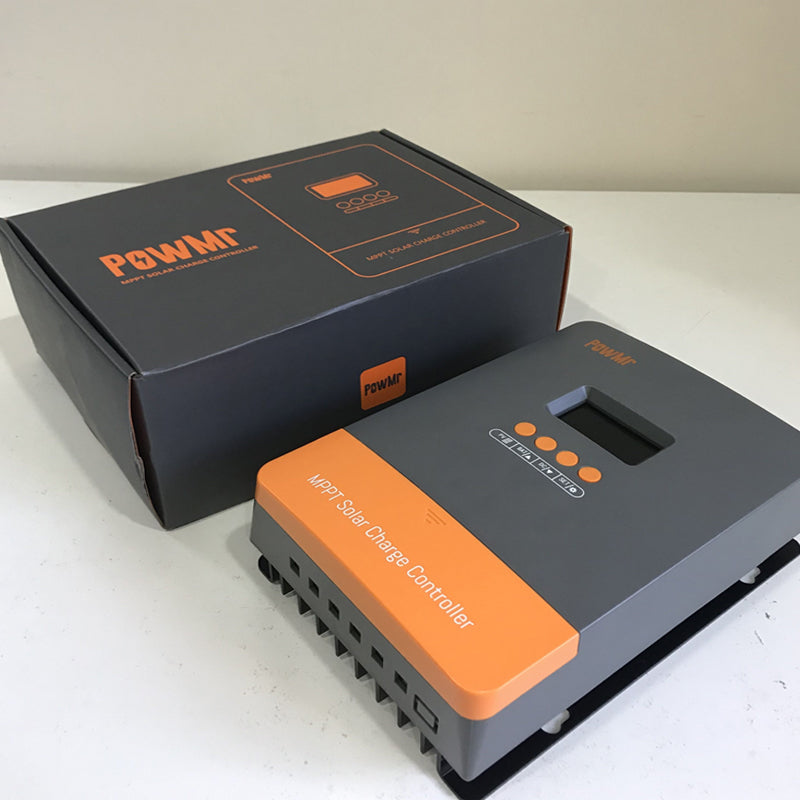

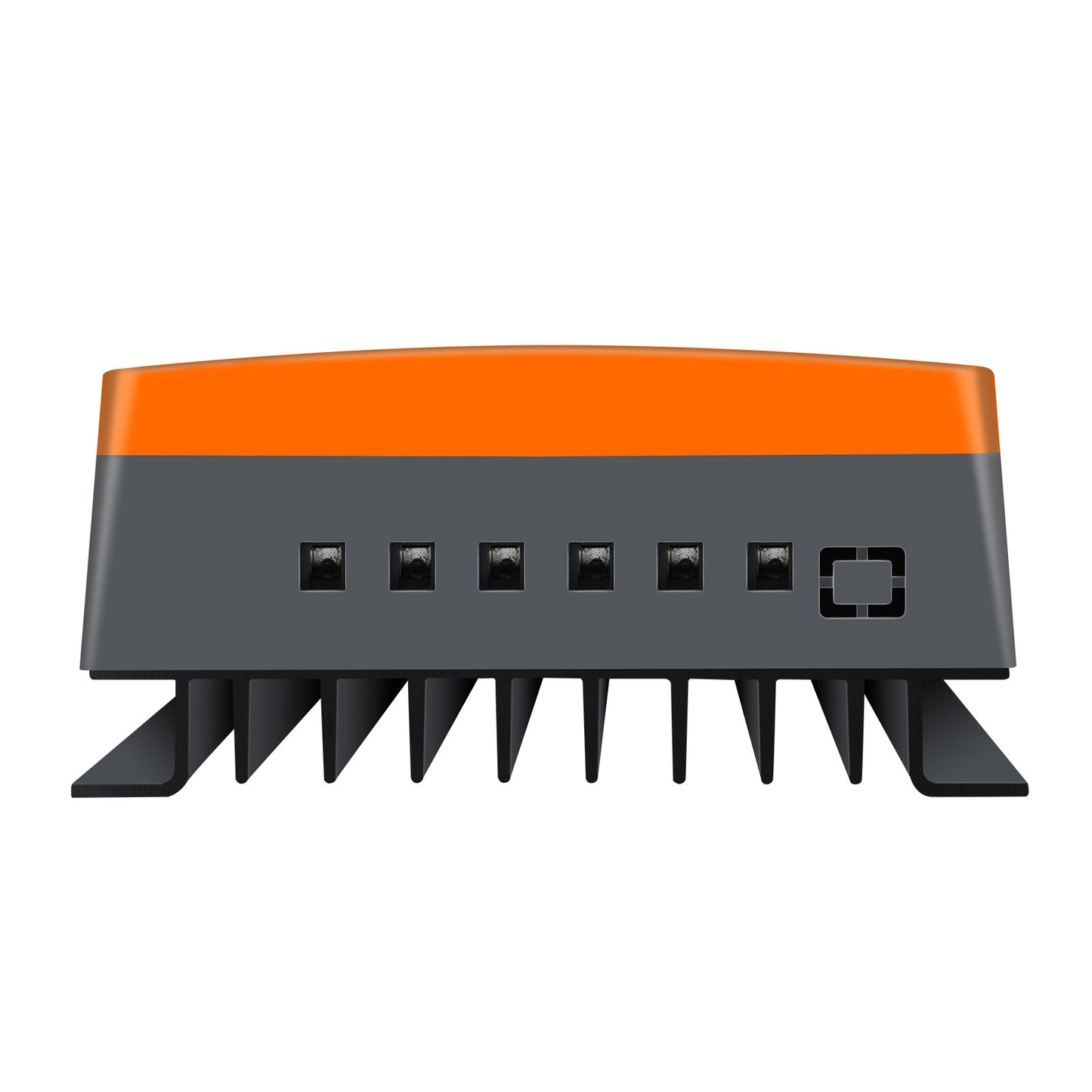

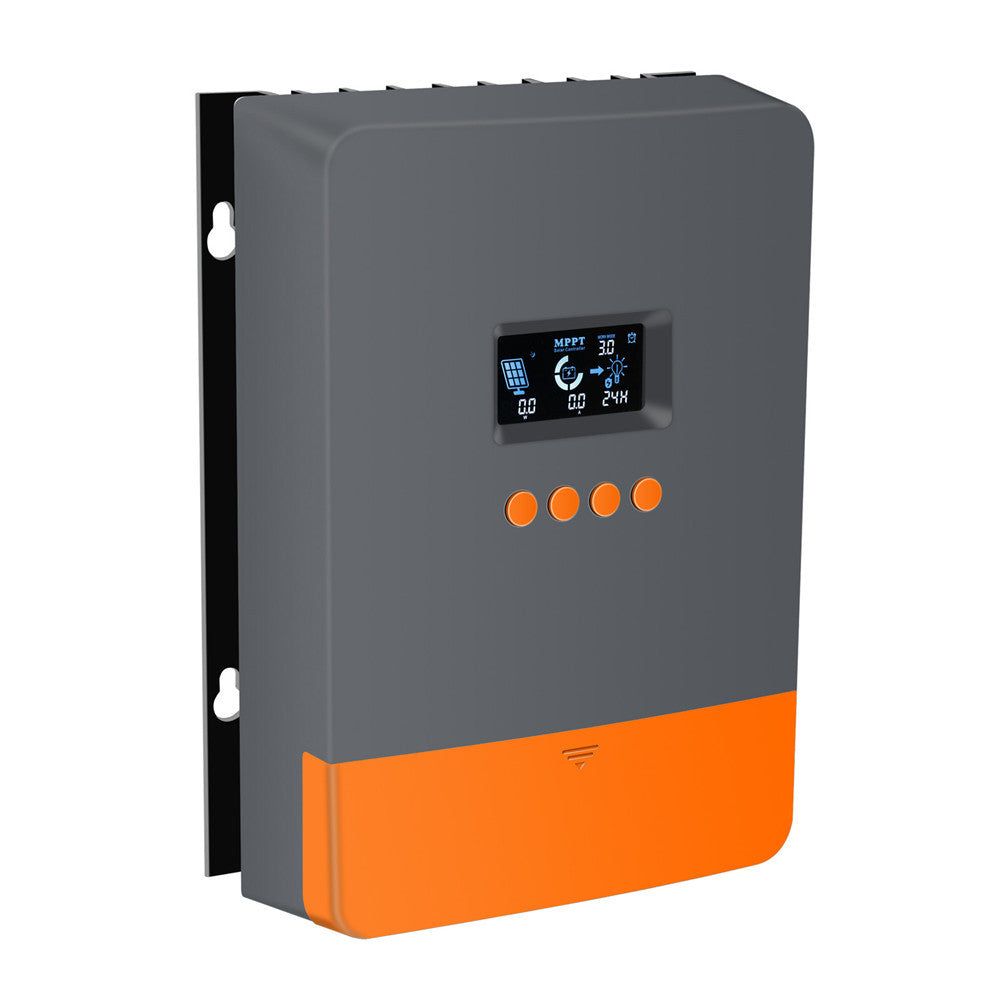

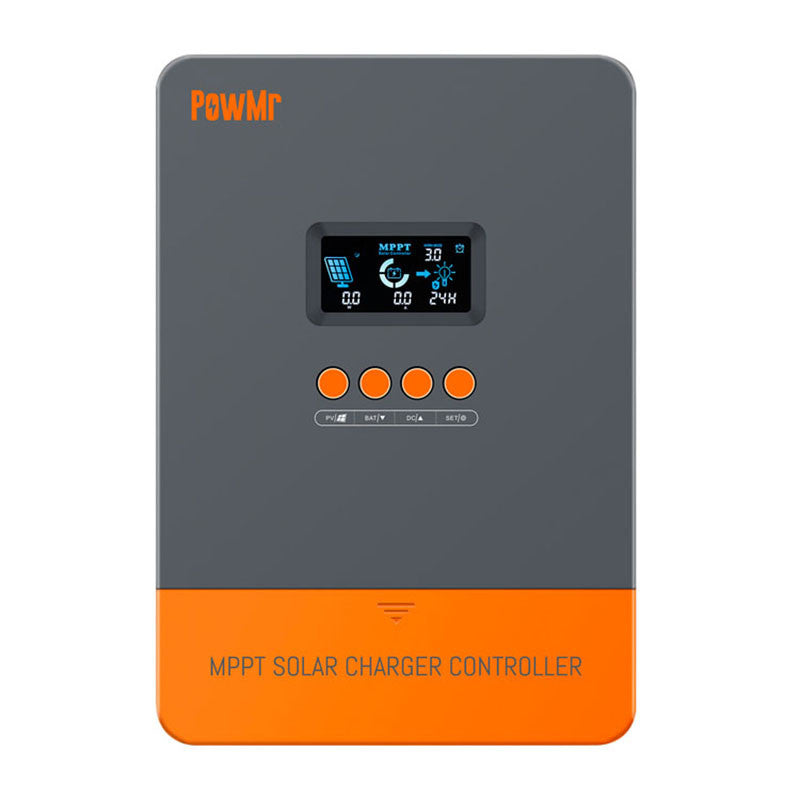

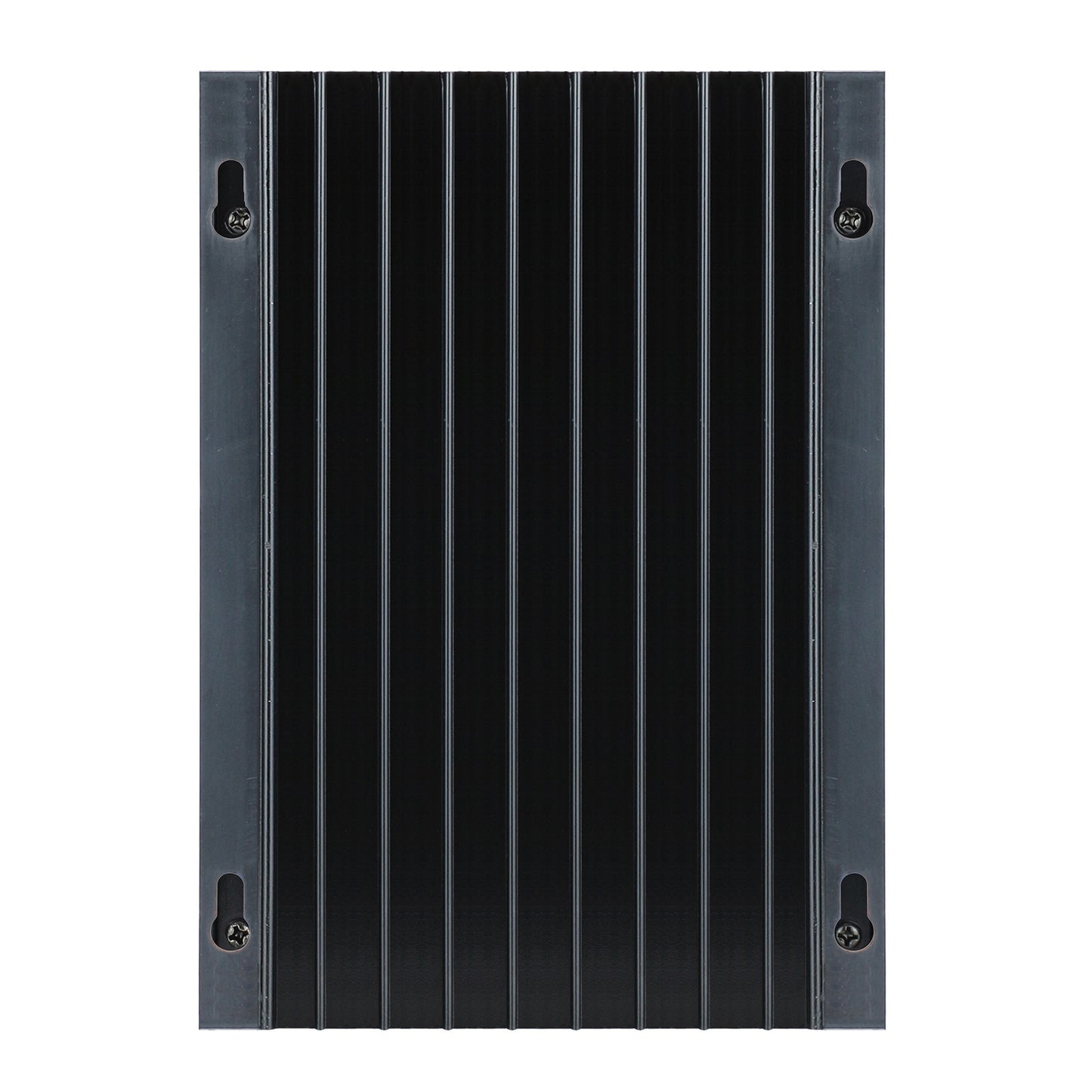

Product Image:
