SPECIFICATIONS

Brand Name: SURPASS HOBBY

Origin: Mainland China

Material: Metal

RC Parts & Accs: Motors

Size: 35.5mm*49mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Motor

Tool Supplies: Assembled class

Technical parameters: KV1100

Model Number: 3650 RC Motor

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Shaft: 3.175mm

Connector: 4.0 Gold

SURPASSHOBBY KK 3650 1650KV 2050KV 2300KV 3100KV 3600KV 4500KV 5200KV 5900KV 6900KV 7700KV 9000KV Waterproof Brushless Motor for RC 1/10 GTR/Lexus 3S RC Drift Racing Car

Features:

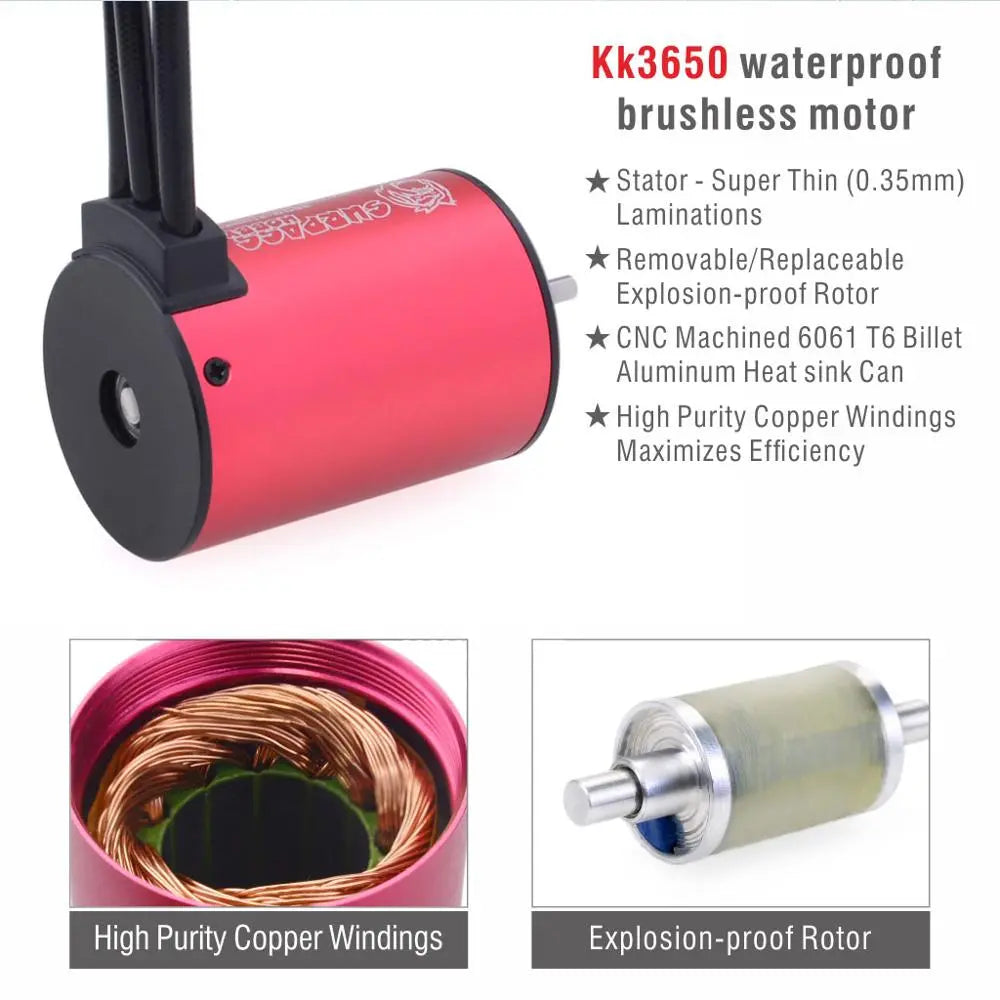

4 Pole 12 Slot Hi-torque Motor Design

High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings

Universal fit, for 1:10 2S RC car , 3S RC racing car

Precision balanced rotor,smoothness for best reliability and maximum RPM

Stator - Super Thin (0.35mm) Laminations

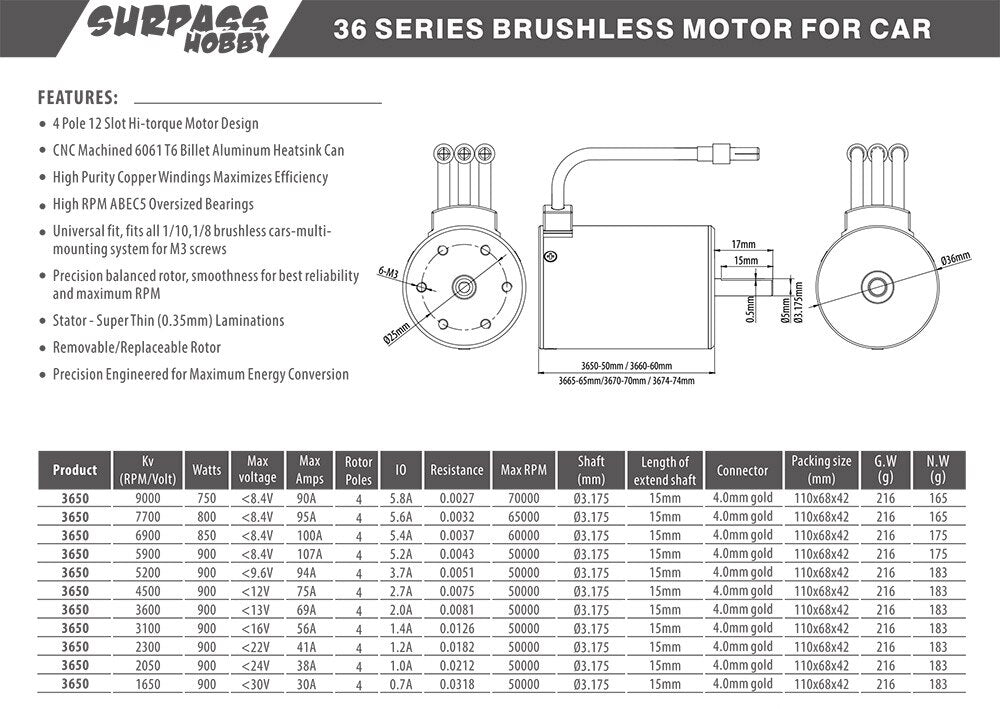

Specifications:

Brand: SURPASSHOBBY

Series: KK

Name: 3650 RC Motor

KV(RPM/Volt): 1650KV 2050KV 2300KV 3100KV 3600KV 4500KV 5200KV 5900KV 6900KV 7700KV 9000KV Optional

Watt: 850

Max RPM: 60000

Max voltage: <8.4V

Max amps: 100A

Rotor poles: 4

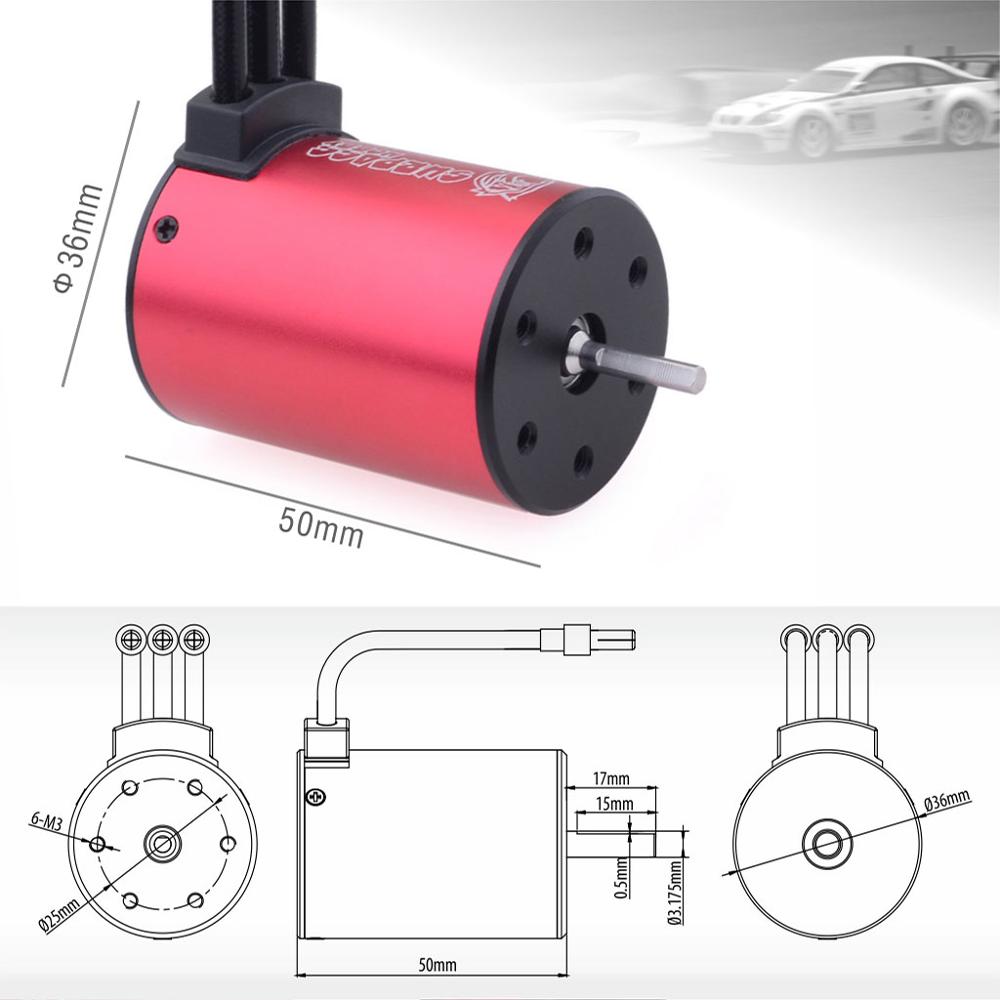

Diameter: 35.5mm

Length: 49mm

Shaft length: 15mm

Connector: 4.0mm gold

Weight:165g

Package Information:

Package size:110 x 70 x 42mm/4.33 x 2.76 x 1.65in

Package weight:202g/7.12oz

General Box Package

Package Included:

1 x SURPASSHOBBY KK 3650 Brushless Motor

1 x English Manual
