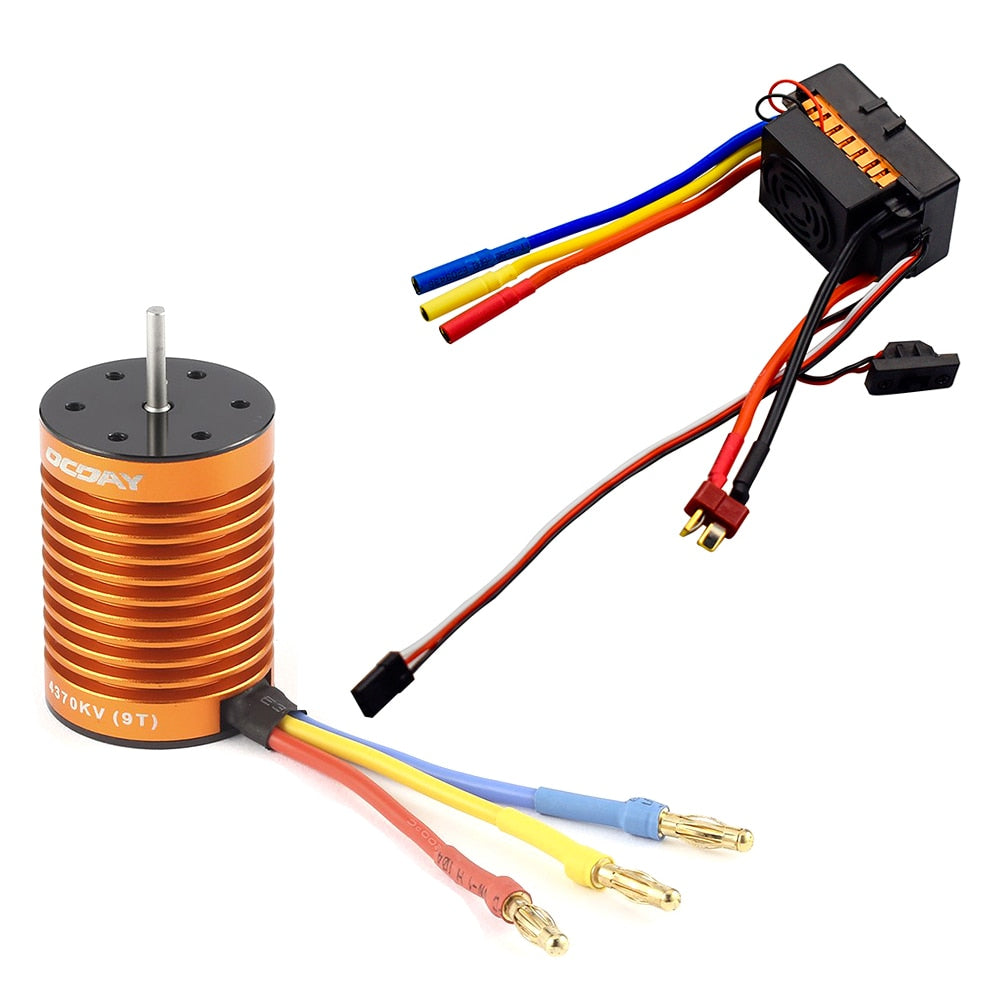

The set includes a 3650 4370KV sensorless brushless motor, a 60A ESC, which is perfectly fit for the 1/10 RC car. The motor is built from high quality aluminum alloy. Thus it can provide longer run time with its high efficiency, high power and rotation speed. And the ESC is built with the highest quality components to ensure high efficiency operation. It features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity.

Features:

Same size as a traditional brushed 540 class motor, suitable for all 1/10 scale chassis RC Car

4 poles Hi-torque motor design Large output power

Precision balanced rotor, smoothness for best reliability and maximum RPM

Copper wires of 180℃ high

CNC machined 6061 T6 billet alumium

Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.

Description:

High RPM High quality bearings.

High quality magnets

Dustproof design

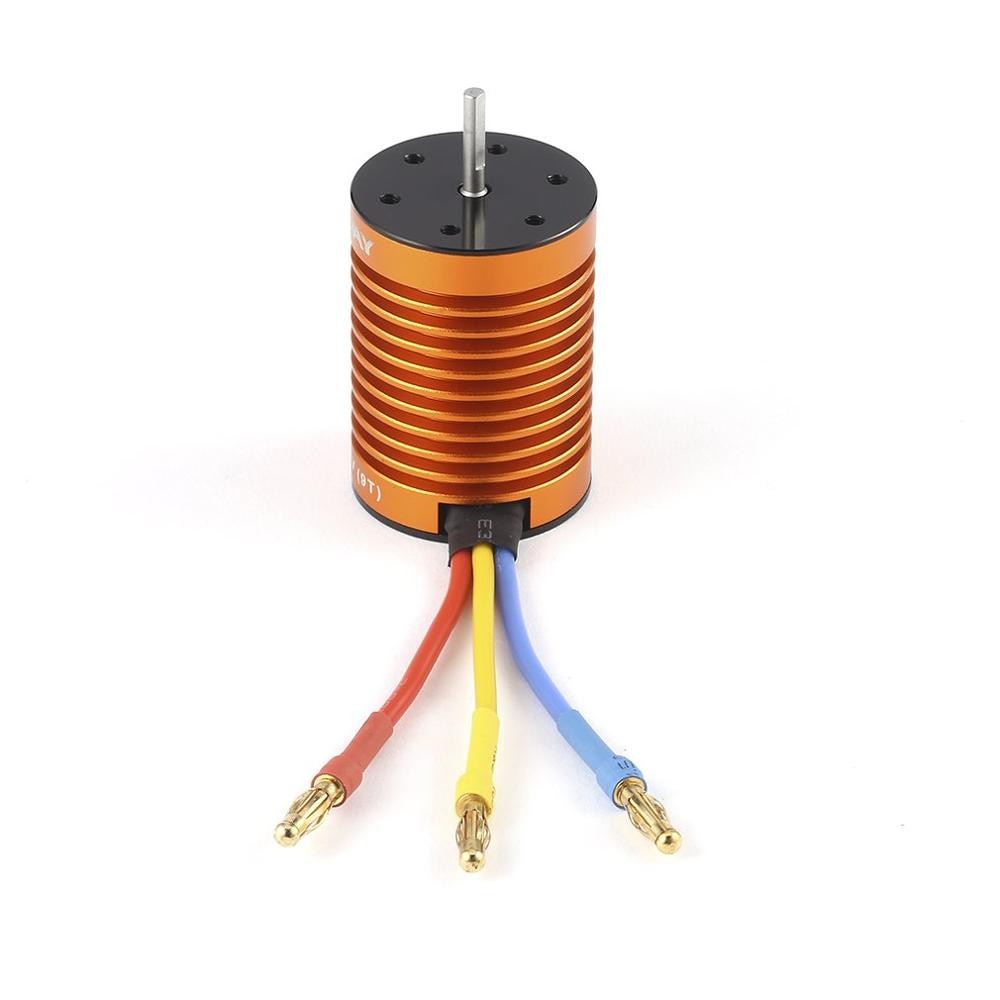

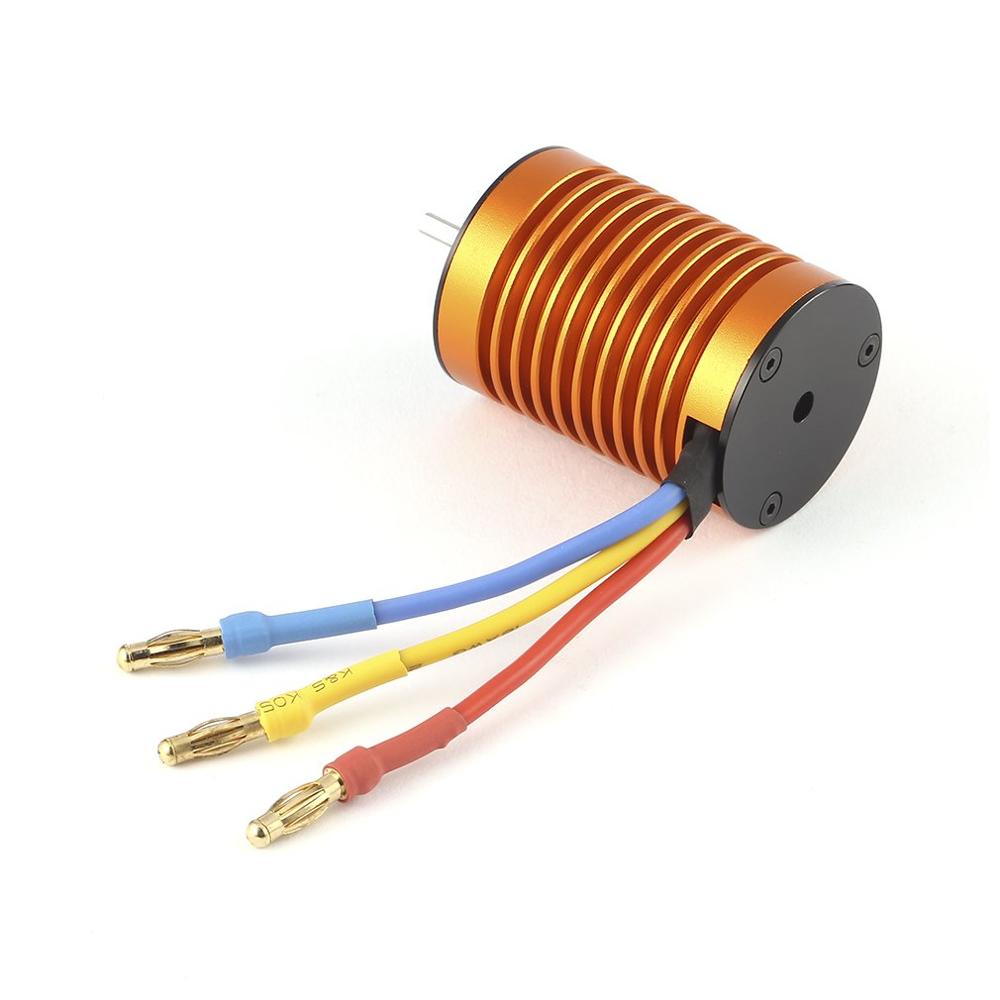

Motor Specifications:

Motor KV: 4370

Model: 9T Motor

Max Current: 66A

Max Watts: 820W

Max voltage: 7.4V(2S)-11.1V(3S)

Suitable ESC: 35A or higher

Sensored: No

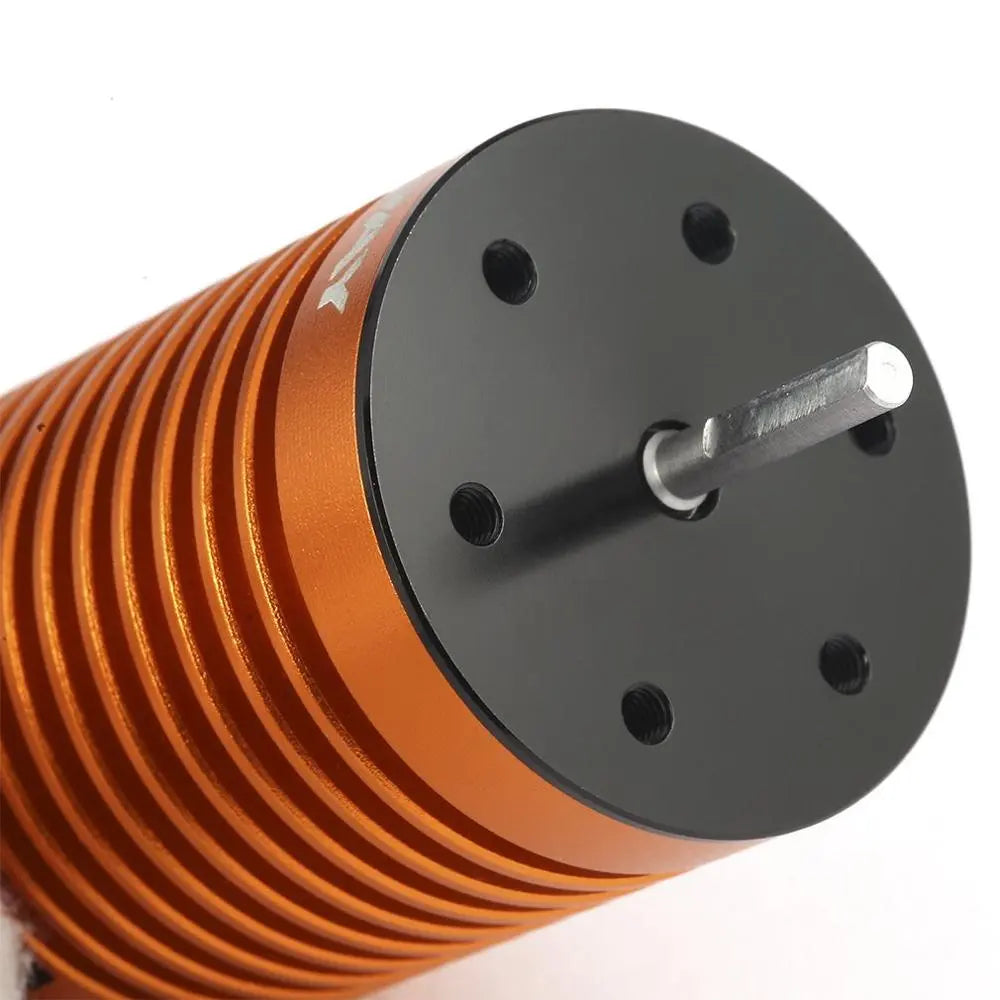

Shaft : 3.17mm

Shaft length: 15mm

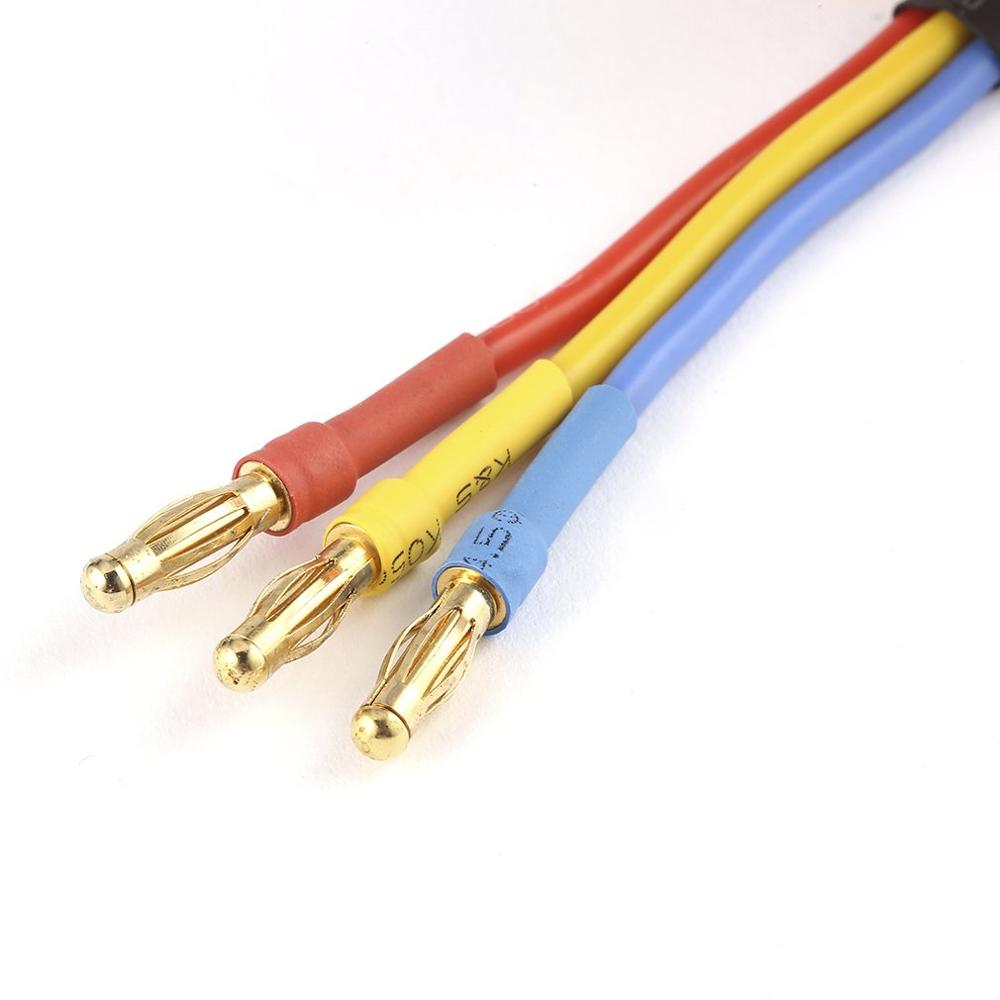

Bullet Connector: 4mm Gold Plug

Input Battery Types: NiCd / Nimh / Li-po Battery

Recommend Model: RC Model 1/10 Car

Resistance: 0.0125ohm

Rotor (Pole): 4-pole

Color: Orange

Outer Diameter: 36mm

Height: 65mm

Weight: 174g

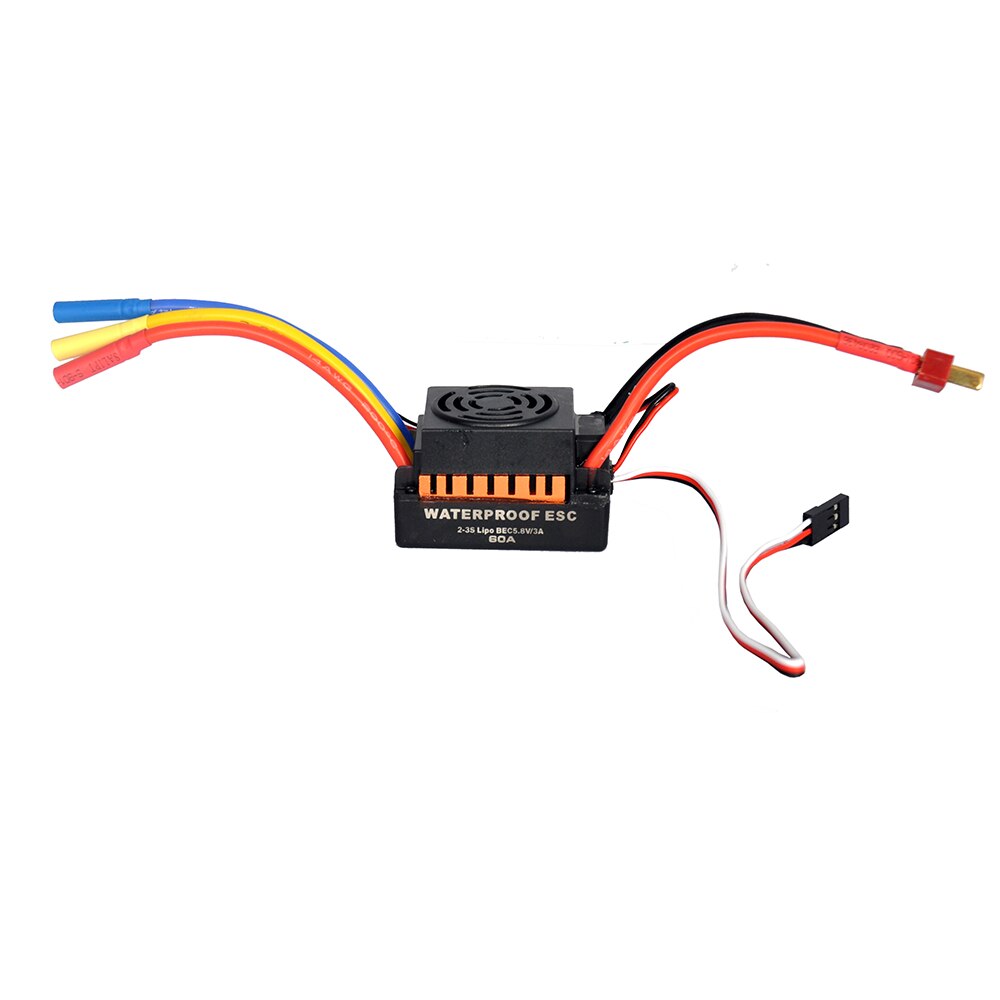

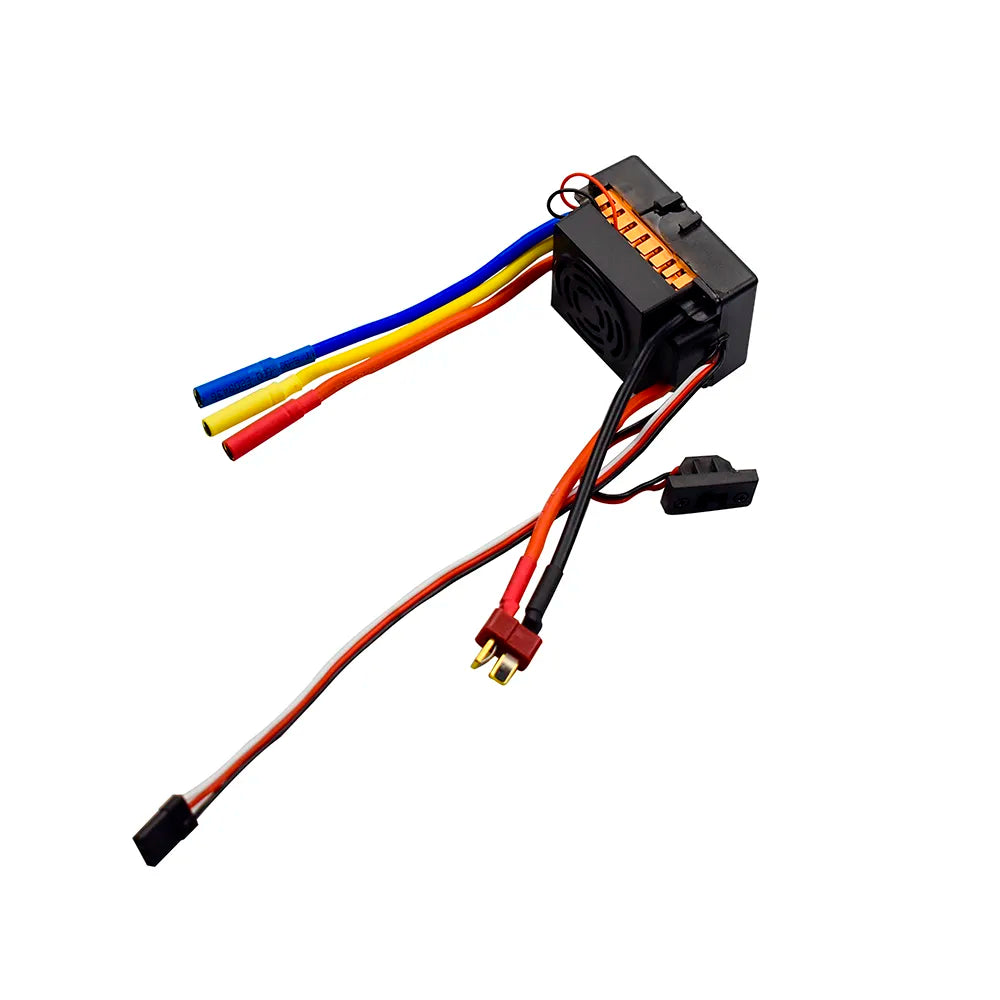

ESC Specifications:

Features:

- Compatible with a variety of non-inductive brushless motor;

- Using high-quality materials, so that the ESC has strong resistance to current capacity;

- The new program algorithm, excellent start effect, acceleration and throttle linearity;

- Includes a contest (forward with brake) mode, Exercise (Reversible with brake) mode and climbing car (direct reversing) 3 modes of operation;

- Rich parameter options, for a variety of frame, tires and site characterization;

- Multiple protection features: Low voltage protection (supports lithium and nickel-cadmium / nickel metal hydride batteries), temperature protection, throttle control protection, stall protection;

- Software into the angle adjustment, and the traditional way into the angle adjustment (rotary motor cover to change the relative position of the sensor) has the same effect, the method is more simple and more delicate, no risk of damage to the motor or ESC;

- Touch programmed, there is a single bond and restore the factory settings of functions;

- Supports a variety of parameter setting mode: ESC key, the ESC program card, 2-in-1 multifunction professional programmers box, PC special program;

- Professional programmers can take advantage of USB interface box ESC firmware upgrade online (Firmware)

Description:

Use top quality electronic components to enhance the current endurance ability of the ESC.

Excellent start-up, acceleration and linearity features.

Very low resistance

Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.

Specifications:

For Vehicle Type: Car

Operating Current: 60A

BEC Output: 3A/5.5V

Input: 2-3 cells LiPo.

Motor Supported: sensorless,brushless

Connector: 4.0mm Banana Bullet

Material: ABS

Main Color: Black

Size: approx. 50 x 38  x 37mm

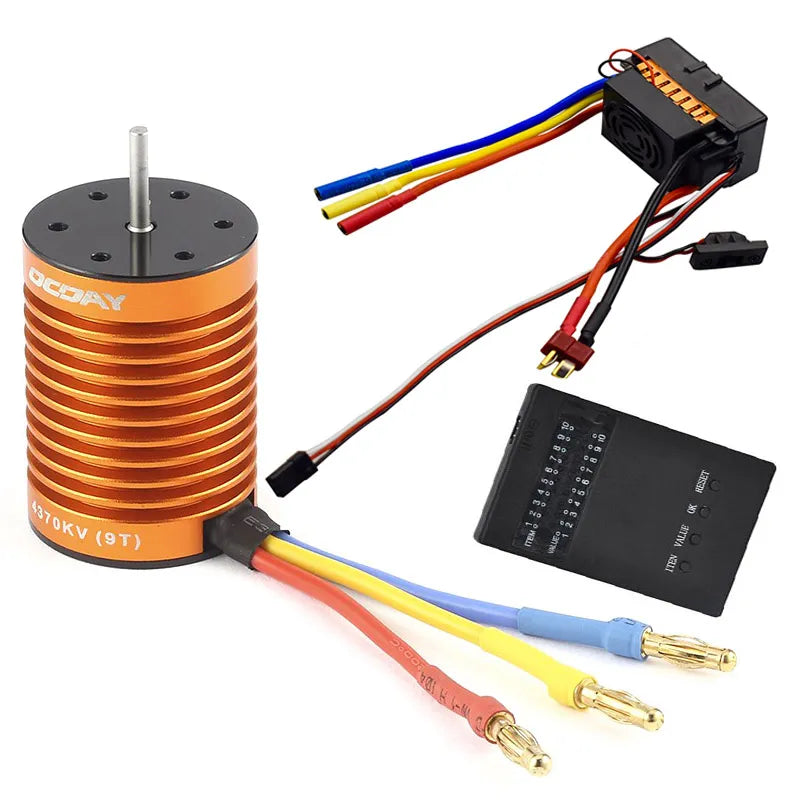

Package includes:

1 x 60A Sensorless Brushless Car Electronic Speed Control ESC

1 x 1:10 B3650 4370KV 4 Poles Brushless Motor
